Nellcor OxiSmart Neonate Wrap SpO2 1.0m for Philips | SS-024-NS20

Description

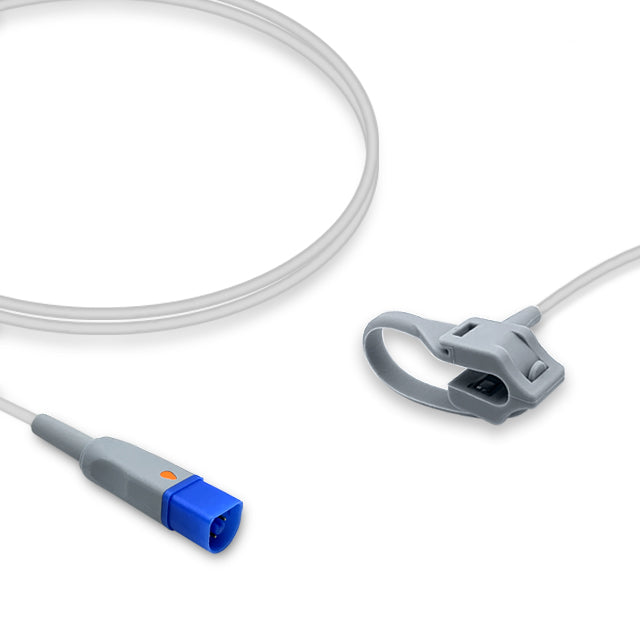

This reusable neonate wrap sensor uses Nellcor OxiSmart tech, with a 1.0m cable, 4mm diameter splitting to 2.5mm x 2, in a TPU jacket. It connects via a Philips 8-pin D-shaped connector, compatible with Philips IntelliVue, SureSigns, HeartStart, Goldway G40, and Solaris NT2A/NT2C monitors. It replaces Philips parts M1193A, 989803103241, and 989803205881. Latex-free, meets FDA and CE standards.

Specifications

• Part Number: SS-024-NS20

• OEM Cross References: M1193A, 989803103241, 989803205881, P013-30M

• Category: SpO2

• Patient Size: Neonate (<3Kg)

• Sensor Type: Wrap

• Total Cable Length: 3.5 ft (1.0m)

• Connector Proximal: Neonate Soft

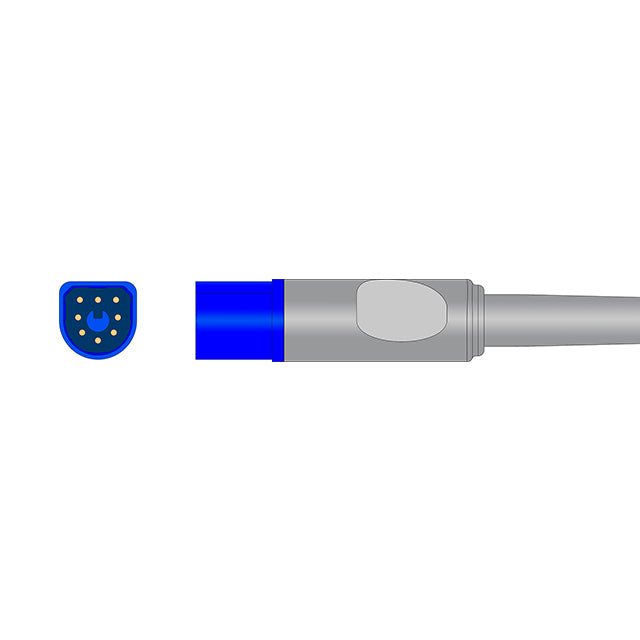

• Connector Distal: Philips 8-pin D-Shaped Male Connector

• Cable Material: TPU Jacket

• Cable Diameter: 4 mm, splitting to 2.5 x 2 mm

• Cable Color: Gray

• SpO2 Technology: Nellcor OxiSmart

• Lifecycle: Reusable

• Latex-free: Yes

• Compatible Devices: Goldway G40; Philips C1, C3, FM20, FM30, FM40, FM50, HP Viridia 24C, HeartStart MRx, M2705A, M3, M3001A series, M4, M4841A, MP 20/30/40/50/60/70/80/90, SureSigns VM1, VS2, VS3, VSi, VM4/VM6/VM8, Viridia 24C; Solaris NT2A, NT2C

• Certifications: FDA, CE, ISO 80601-2-61:2011, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant

• Packaging: Bag of 1

• Weight: 0.2lb

• Warranty: 12 months
