Masimo > Nellcor Adapter Cable 2.4m for Philips Monitors | SA-024M-24

Description

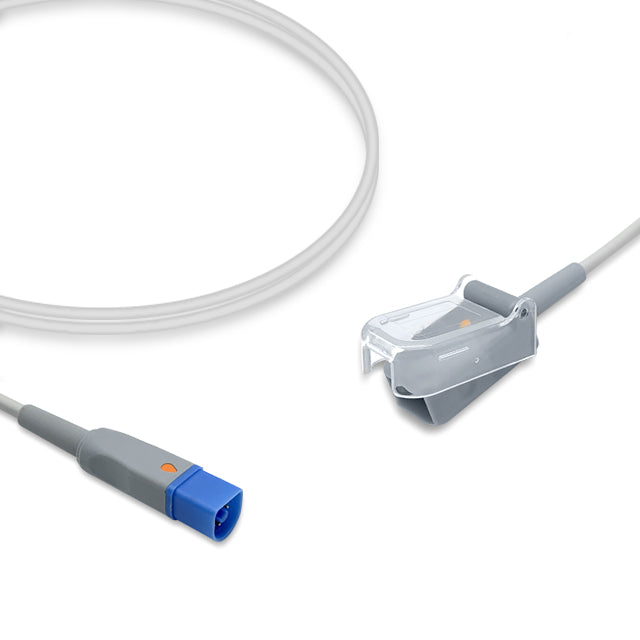

This adapter cable allows Masimo SpO2 sensors to be used with Philips patient monitors that utilize Nellcor OxiSmart technology. It measures 2.4m (8ft) and provides extended reach between the sensor and monitor. The cable features a female 9-pin D-Sub triple-keyed proximal connector for Masimo sensors and a Philips 8-pin D-shaped male distal connector for the monitor. It's compatible with a wide range of Philips monitors, including IntelliVue, SureSigns, and MP series. It's an alternative to Masimo parts 2270, LNC MP10, 2281, and Philips part 989803148221. The cable is wrapped in a blue TPU jacket with a 4mm diameter. It's reusable, latex-free, and meets FDA and CE standards.

Specifications

• Part Number: SA-024M-24

• OEM Cross References: 2270, LNC MP10, 2281, 989803148221, E10-708MP

• Category: SpO2

• Product Type: Adapter Cable

• Total Cable Length: 10 ft (2.4m)

• Connector Proximal (Sensor End): Female, 9-Pin D-Sub Connector, Triple Keyed (for Masimo sensors)

• Connector Distal (Monitor End): Philips 8-pin D-Shaped Male Connector

• Cable Material: TPU Jacket

• Cable Diameter: 4 mm

• Cable Color: Blue

• SpO2 Technology: Masimo to Nellcor OxiSmart

• Lifecycle: Reusable

• Latex-free: Yes

• Compatible Devices: Philips Heartstream XL, IntelliVue FAST-SpO2, IntelliVue MP70, IntelliVue MX40, IntelliVue MX400, IntelliVue MX450, IntelliVue MX500, IntelliVue MX550, IntelliVue MX600, IntelliVue MX700, IntelliVue MX800, M1020B, M2601A, M3000A, M3001A series, M3002A, M3002A MMS X2, M3500B, M4735A, M8102A series, MP 30, MP 50, SureSigns VM6, VM8, VS2, VS3, VS4, VM4

• Certifications: FDA, CE, ISO 80601-2-61:2011, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant

• Packaging: Bag of 1

• Weight: 0.3lb

• Warranty: 12 months
