Nellcor OxiSmart Extension Cable 3.0m for Philips Monitors | SA-024-30NE

Description

This 3.0m (10ft) extension cable, designed for Nellcor OxiSmart SpO2 sensors on Philips monitors, features a female 9-pin D-Sub connector for the sensor and a Philips 8-pin male connector for the monitor. Compatible with Philips monitors using Nellcor OxiSmart, it replaces parts M1943AL and 989803128651. Wrapped in a blue TPU jacket, it's reusable, latex-free, and meets FDA and CE standards.

Specifications

• Part Number: SA-024-30NE

• OEM Cross References: CB-A4001006VN10, NXPH2025-10, M1943AL, 989803128651, E01-30M

• Category: SpO2

• Product Type: Extension Cable

• Total Cable Length: 10 ft (3.0m)

• Connector Proximal (Sensor End): Female 9-Pin D-Sub Connector

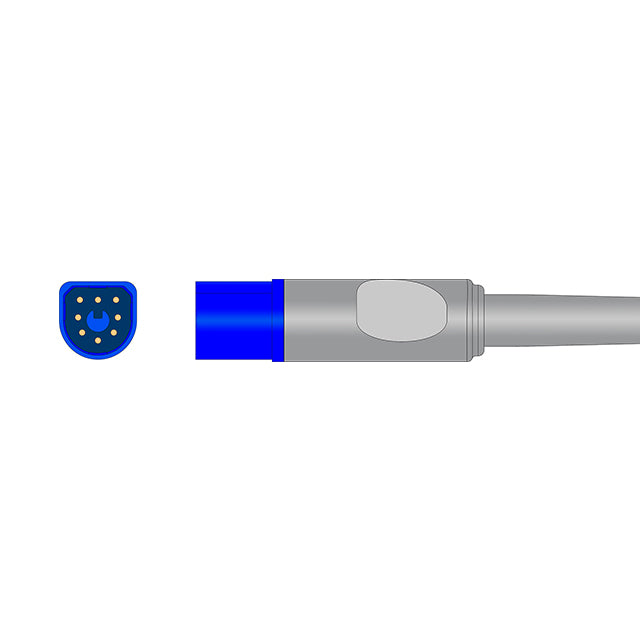

• Connector Distal (Monitor End): Philips 8-pin D-Shaped Male Connector

• Cable Material: TPU Jacket

• Cable Diameter: 4 mm

• Cable Color: Blue

• SpO2 Technology: Nellcor OxiSmart

• Lifecycle: Reusable

• Latex-free: Yes

• Compatible Devices: Philips monitors with Nellcor OxiSmart technology

• Certifications: FDA, CE, ISO 80601-2-61:2011, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant

• Packaging: Bag of 1

• Weight: 0.3lb

• Warranty: 12 months
