3-Lead ECG Telemetry Leadwire for Philips M2590A | EL-TAA3-90S-A

Description

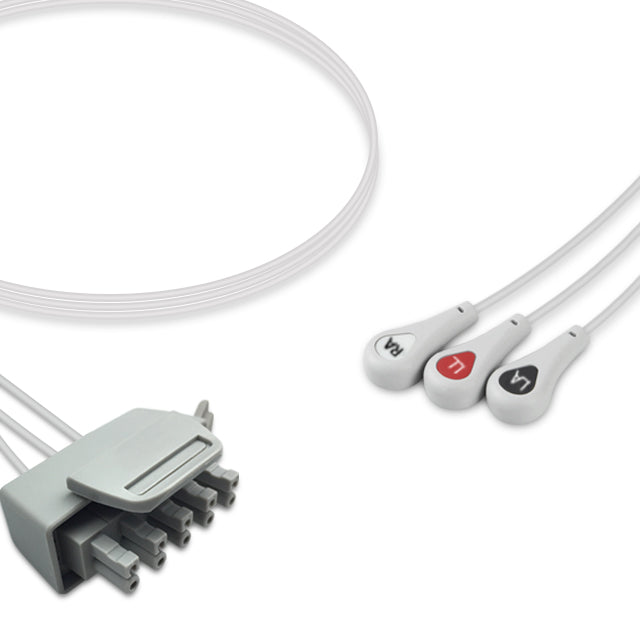

This 3-lead ECG telemetry leadwire is designed for use with Philips monitoring systems, including the M2600A, M2601A, and M2636A. The cable features a twin-pin distal connector with a telemetry cover and snap electrodes at the patient end. Each lead measures 3 feet in length and is constructed with a TPU jacket. This reusable leadwire is intended for adult and pediatric telemetry monitoring.

Specifications

• Cross References: LW-2300029/3AT, Philips M2590A, KCB031

• Compatibility: Philips M2600A, M2601A, M2636A, Viridia M2600A

• Part Number: EL-TAA3-90S-A

• Lead Number: 3

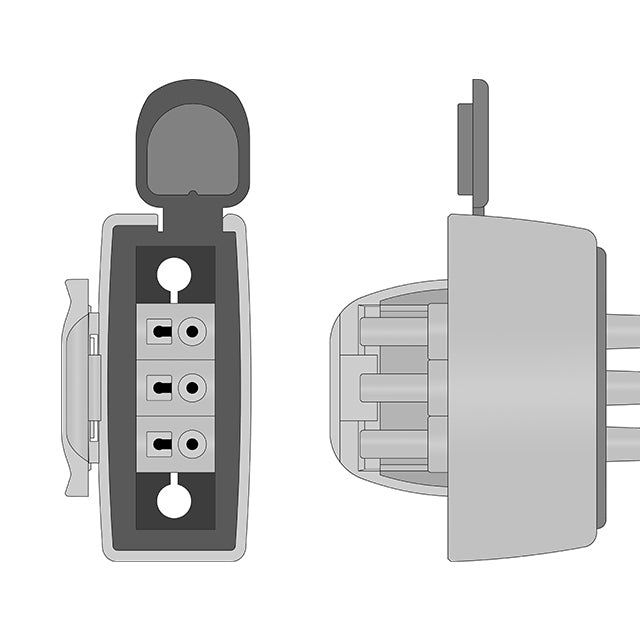

• Connector Distal: Twin Pin with Telemetry Cover

• Connector Proximal: Snap

• Lead Cable Length: 3 ft (limb and V leads)

• Lead Cable Diameter: 2.6 mm

• Lead Cable Material: TPU Jacket

• Lead Cable Color: Gray

• Patient Size: Adult/Pediatric

• Latex-free: Yes

• Sterile: No

• Packaging: Bag, 1 unit

• Warranty: 6 months

• Weight: 0.3 lb

• Certifications: FDA, CE, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant
