5-Lead ECG Cable Philips IntelliVue M1968A | EL-PH5-90G-A

Description

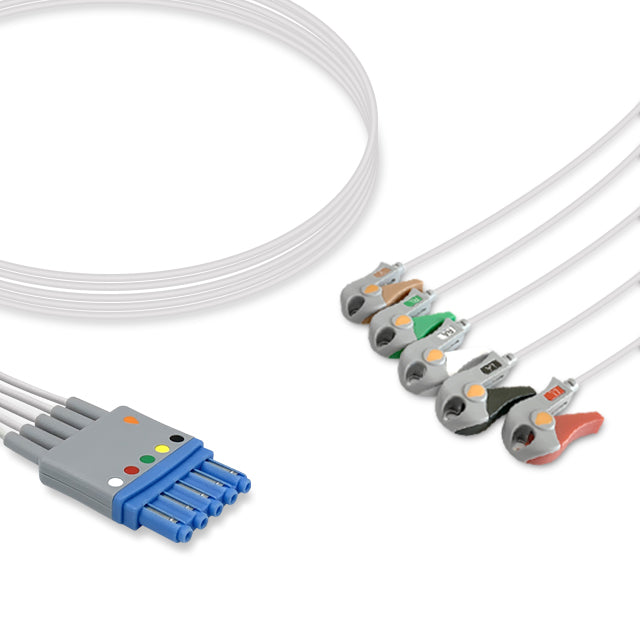

This 5-lead ECG cable with a Philips IntelliVue connector is designed for monitoring applications with compatible Philips systems. The cable features grabber- or pinch-style electrodes at the patient end and follows AHA color coding for lead placement. It measures 0.9 meters in length.

Specifications

• Cross References:
  • LW-3090SMX/5A, AREL-PH5-90G-A, LPA5-90P0, LDW-05BK-29AS-0000, LDW-05BK-MXAS-0000, LDW-05BK-51AS-0000, HPMA5-90P, NLPH5151, HPA590P, Philips 989803125841, Philips M1973A, Philips M1968A, L01-05-MP

• Compatibility:
  • Philips IntelliVue MP20, MP20 Junior, MP30, MP40, MP50, MP60, MP70, MP80, MP90, MX100, MX400, MX430, MX450, MX500, MX550, MX600, MX700, MX800, X2, X3; Efficia CM100, CM12, CM120, CM150; SureSigns VM6, VM8; HeartStart MRx, HeartStart XL; Viridia 24, 24C; M2, M3, M4; M3000A, M3001A, M3002A; M8001A-M8010A; and many additional Philips models (see full list for complete compatibility)

• Lead Number: 5 lead

• Electrode End: Grabber

• Lead Type: IntelliVue

• AHA/IEC Code: AHA

• Lifecycle: Reusable

• Packaging: 1 unit

• Certifications: CE, FDA, CFDA
