Masimo Cable 2.4m for LNCS/RD SET Sensors | SA-009RB-24

Description

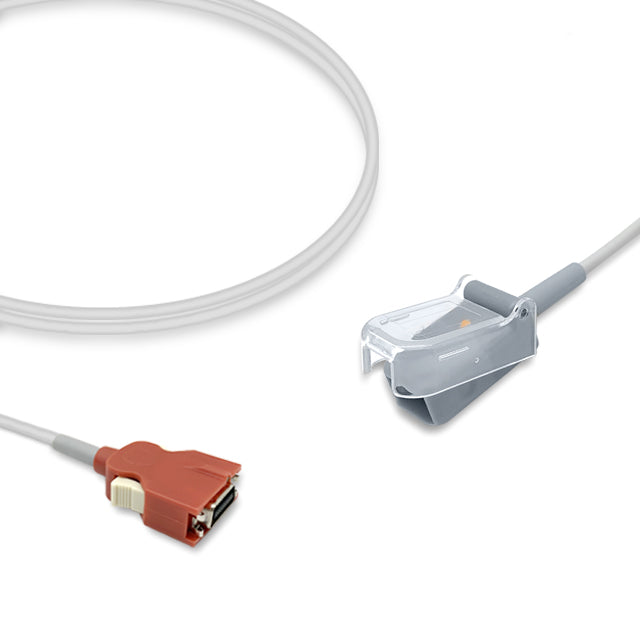

This 2.4m extension cable connects Masimo LNCS and RD SET sensors to monitors. It has a DB-20 red proximal plug, a female 9-pin D-Sub connector for sensors, and a durable TPU jacket. Compatible with Masimo, Stryker Physio-Control, Zoll, and Mindray monitors using Masimo 20-pin input. Reusable, latex-free, FDA and CE certified.

Specifications

Part Number: SA-009RB-24
Category: SpO2
Product Type: Extension Cable
Total Cable Length: 8 ft (2.4m)

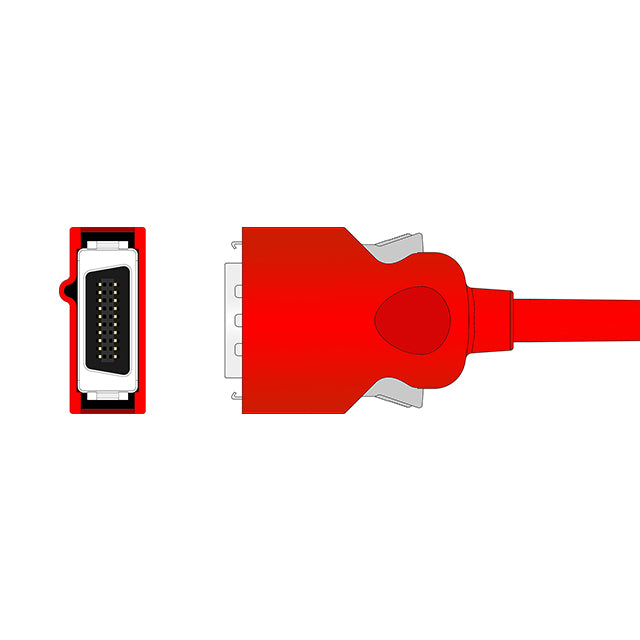

Connector Proximal (Monitor End): DB-20, Red Connector (Masimo 20-Pin)
Connector Distal (Sensor End): Female, 9-Pin D-Sub Connector, Triple Keyed
Cable Material: TPU Jacket
Cable Diameter: 4 mm
Cable Color: Gray
SpO2 Technology: Masimo LNCS / RD SET
Lifecycle: Reusable
Latex-free: Yes
Compatible Devices: Masimo Pronto-7, Rad-5, Rad-57, Rad-5v, Rad-8, Rad-87, Radical-7; Stryker Physio-Control Lifepak 15; Zoll X Series; Mindray Datascope Accutorr 3, Accutorr 7, cPM 12, cPM 8, ePM 10M, ePM 12M
Certifications: FDA, CE, ISO 80601-2-61:2011, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant
Packaging: 1 Pc / Bag
Weight: 0.3lb
Warranty: 6 months
