6-Lead ECG Cable GE Multi-Link Grabber AHA | EL-MQS6-90G-A

Description

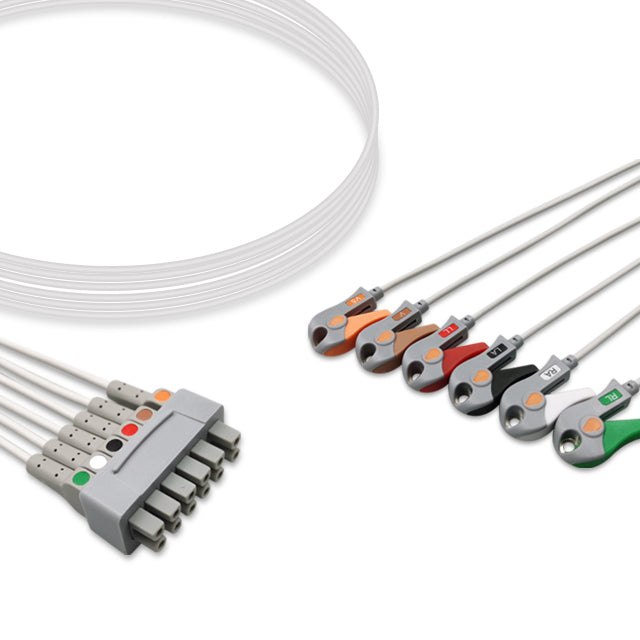

This six-lead electrocardiogram (ECG) cable, equipped with a GE Multi-Link connector, is intended for monitoring applications compatible with GE Healthcare and Marquette systems. The cable is fitted with grabber or pinch-style electrodes at the patient interface and adheres to the American Heart Association (AHA) color coding standards for limb and chest lead placement. It has a length of 0.9 meters and is supplied as an individual set. This reusable cable features shielding to ensure dependable signal transmission.

Specifications

• Cross References:
  • 360Bio-4525, LW-3410029/6A, AREL-MQS6-90G-A, NLGE6261-T, LQB6-90P0, LDW-06BD-51AM-0100, LDW-06BD-MXAM-0100, LDW-06BD-29AM-0100, GE Healthcare 2106397-001, GMEL-MQS6-90G-A, MQMB6-90P, Marquette 421932-003, Marquette 421932-002, Marquette 421932-001, Marquette 2106397-003, Marquette 2106397-002, MARS-GE-000024, RVBELMQS690GA1, 40300-30-6A, MQB6-90P, USOC1671

• Lead Number: 6-lead

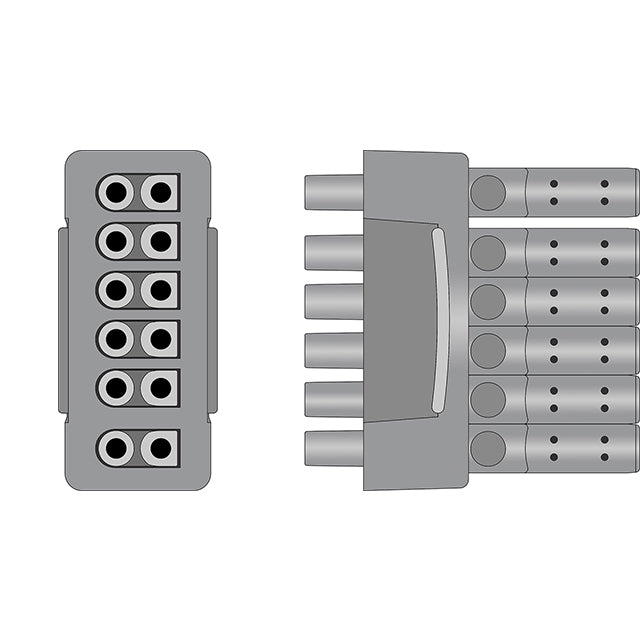

• Lead Type: GE Multi-Link

• Electrode End: Grabber/Pinch

• Cable Length: 0.9m

• AHA/IEC Code: AHA

• Lead Placement: Limb + Chest Lead

• Distal Connector: Individual

• Feature: Shielded

• Intended Use: Monitoring

• Lifecycle: Reusable

• Packaging: 1 Pc / Bag

• Warranty: 6 months

• Certifications: CE, CFDA, FDA
