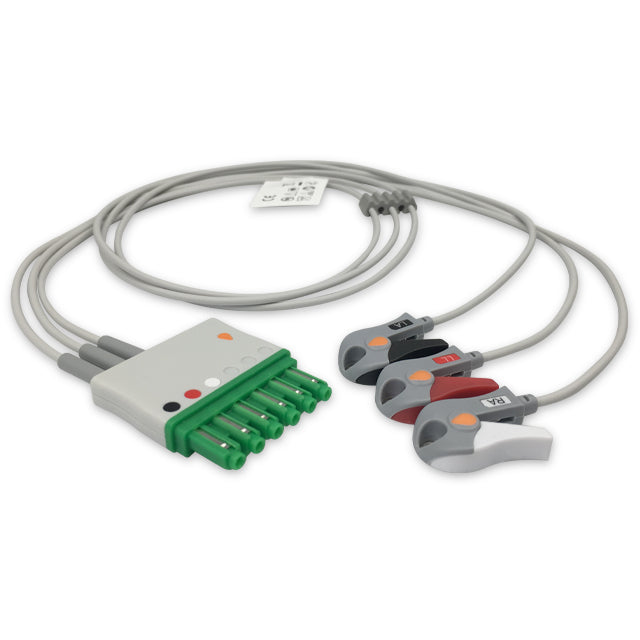

3-Lead ECG Cable Draeger Molded Grabber 0.9m | EL-DG3-90G-A

Description

This reusable 3-lead ECG cable connects to Draeger monitors with a molded Din interface. It has 0.9m leadwires with grabber electrodes for reusable limb electrodes. The cable follows AHA color coding and is shielded to maintain signal quality.

Specifications

• Part Number: EL-DG3-90G-A

• Lead Count: 3-lead

• Patient Size: Adult

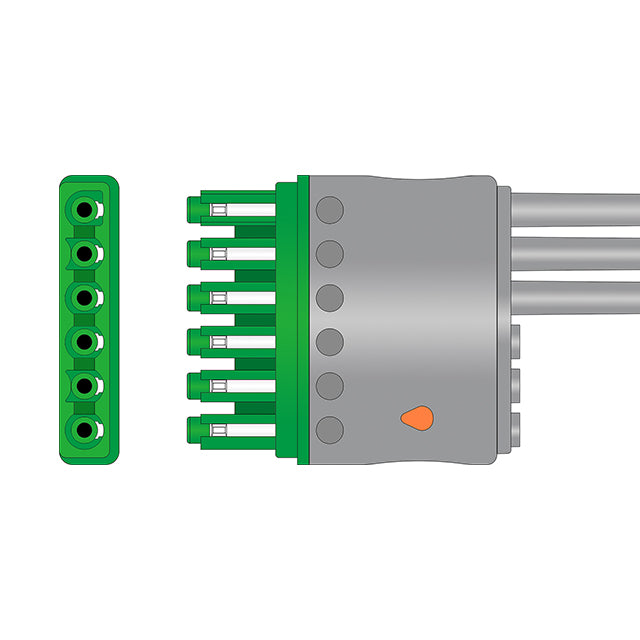

• Lead Type: Draeger (Molded Din-Style)

• Color Coding: AHA

• Electrode End: Grabber/Pinch

• Cable Length: 0.9m

• Lead Placement: Limb Lead

• Distal Connector: Molded

• Feature: Shielded

• Lifecycle: Reusable

• Compatibility: Draeger Infinity M300, Infinity M540, MultiMed Plus, MultiMed Plus OR

• OEM Cross References: 360Bio-4555, AREL-DG3-90G-A, NLDR3131, LG3-90P0, 86595-OR, MP03402, MP03422, 2612001, DRG-MS16231, GMEL-DG3-90G-A, DGM3-90P, MARS-DR-P03402, EL-DG3-90G-A, EL-SM5-90G-A, RVBELDG390GA1, MS16231, DG3-90P, 6017255

• Certifications: CE, CFDA, FDA

• Warranty: 6 months

• Unit: 1 Pc / Bag
